Improved Technical Description
-

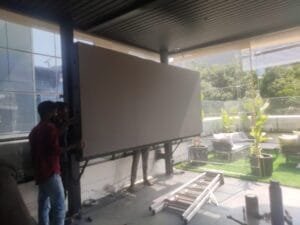

The LED display is installed under the terrace and supported on a pole-mounted steel structure.
-
The overall display size is 3200 mm (W) × 1512 mm (H).
-
The structure is fixed from the rear (back-mounted configuration), with all supporting members and brackets positioned behind the screen.
-
The installation is located in a semi-covered area, protected from direct weather exposure due to the terrace above.
-
The support frame appears to be MS steel, anchored to the floor slab, ensuring stability and load transfer.
-
In Terrace Floor
Short Version

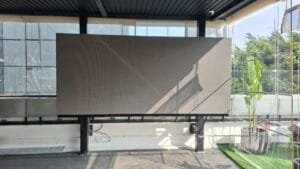

The LED screen (3200 × 1512 mm) is installed under the terrace on a pole-mounted steel structure with back-mounted support arrangement.
